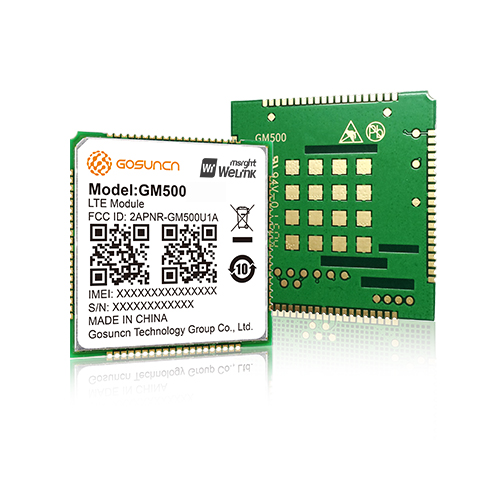

* LCC Form Factor (80 pins)
* Pin-to-Pin with LCC 30*30
* Dimensions: 30mm × 30mm× 2.3mm
* Weight: About 4.0g
* Frequency Band :
--LTE FDD/WCDMA/GSM
* BD/GPS/GLONASS
* Transmit Power:
--LTE: 23 ±2.7dBm (Power Class 3)
--WCDMA : 24 +1/-3dBm (Power Class 3)
--GSM900 : 33±2dBm (Power Class 4)
--GSM1800: 30±2dBm (Power Class 1)
* Receiving sensitivity:
--Rx Diversity
* Power Supply :
--3.4V -- 4.2V(3.8V is recommended)
* Operation temperature: -30°C to +75°C
--Extreme Operating temperature: -40°C to +85°C
* Storage temperature: -40°C to +85°C
* Humidity: 5%~ 95%
* E1C - Cat4/E2C - Cat1
1.LTE FDD: B1, B3, B7, B8, B20
2.WCDMA: B1, B8
3.GSM: B3, B8
* U1A/U1C
1.LTE FDD:B2, B4, B5, B12, B17
2.WCDMA:B2, B5
* J2A/J2AS
1.LTE FDD: B1, B3, B5, B7,B8, B18, B19, B21
2.WCDMA: B1, B5, B6, B8, B19
* A1C
1.LTE:B1, B2, B3, B5, B7, B8, B28, B40
2.WCDMA:B1, B2, B5, B8
3.GSM:quad-band
* C2A
1.GSM:B3, B8
2.UMTS:B1, B5, B8
3.TD-SCDMA:B34, B39
4.CDMA:BC0
5.LTE FDD:B1, B3, B5, B8
6.LTE TDD:B38, B39, B40, B41
* Note: OpenLinux solution are embedded in C2A version
* LTE FDD
--Uplink 50Mbps / Downlink 150 Mbps
* TD-LTE
--Uplink30Mbps / Downlink 112Mbps
* WCDMA
--Uplink 5.76Mbps / Downlink 42Mbps
* GPRS (Multi-slot Class 10)
--Uplink 85.6 kbps / Downlink 85.6 kbps
* USB 2.0 High speed (480 Mbps)
* UART1(8-wires)
* UART2(2-wires)
* SIM interface (1.8/3.0V)
* SPI
* I2C
* Antenna (RF PAD for Primary, Diversity and GPS)
* LED indication
* Reset & Power-on
* WAKE-IN & WAKE-OUT
* 2nd SIM(Only support by PID:A1C)
* SDCC(Only support by PID:A1C)
* Ethernet (Only support by PID:A1C)
* Support embedded TCP & UDP protocols
* Support protocols PAP and CHAP used for PPP connection
* USB Selective Suspend & Remote wakeup
* RAS /ECM/NDIS
* Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelink extended AT commands
* Support Text and PDU mode
* Point to point MO and MT
* SMS Status Report
* SMS centre address setting
* Management of SMS
* Drivers
--Windows XP, Vista, 7 , 8, Win CE, Windows Mobile
--Linux
--Android
* Diag-log Tool
* Firmware Update Tool
